BIM-content creation

FAMILY - MODEL ELEMENTS OF THE SAME TYPE

Each element in BIM-Model is a family, including utilities, equipment, load-bearing structures, fittings, etc. The stability of the program directly depends on BIM-families.

The stability of the program operation directly depends on BIM-families. Qualitatively developed families allow to optimize the process of BIM-design, improve work documentation, automatically generate specifications, simplify the drawings, get information from the model and much more.

For efficient and high-quality project implementation, Eneca's specialists can create content documents based on your requirements.

Send request

MODERN
APPROACH

We create families with different levels of detail (LOD200-500) depending on the requirements of your project. Factors such as project size, complexity, and budget are taken into account to determine the appropriate level of detail.

The focus on accuracy, reliability and functionality of the family library are our top priorities during development, along with ensuring effective use in BIM projects.

BIM services:

BIM integration

BIM-content creation

BIM coordination

BIM Programming

2D to 3D modeling

BIM areas:

Design
Construction
Education
IT
Industry
Energy
Real estate development

Design utilizing cutting-edge BIM technologies at every level of LOD

Development process

1. INITIAL DATA COLLECTION

The process of input data collection starts with the discussion of the project with the client to ensure full compliance with the requirements for the creation of families.

The client provides technical data, specifications and drawings of the required objects that are part of the BIM model and will be useful for the development. This may include dimensions, material, functional characteristics and other important information.

2. ANALYSIS OF DRAWINGS, CATALOGUES, REFERENCES

At the stage of studying the raw data provided by the customer, we carefully consider the selection of a suitable template on which to create the families.

All dimensions, materials, technical catalogues and images are used as basic documents for a complete representation of the families to be developed.

3. FAMILY FORMATION

The development process includes creating the family framework from invisible lines, then highly detailed geometry, setting up materials, graphics and displays, and filling the families with information according to the provided documentation.

4. MANUAL AND TESTING, TRANSFER OF DATA TO THE CUSTOMER

The final stage of development is testing the families and creating a detailed guide to their use and application in the BIM project.

After approval, the customer receives a library of high quality families in various formats such as RFA, DWG, IFC, etc.

Ananlytics

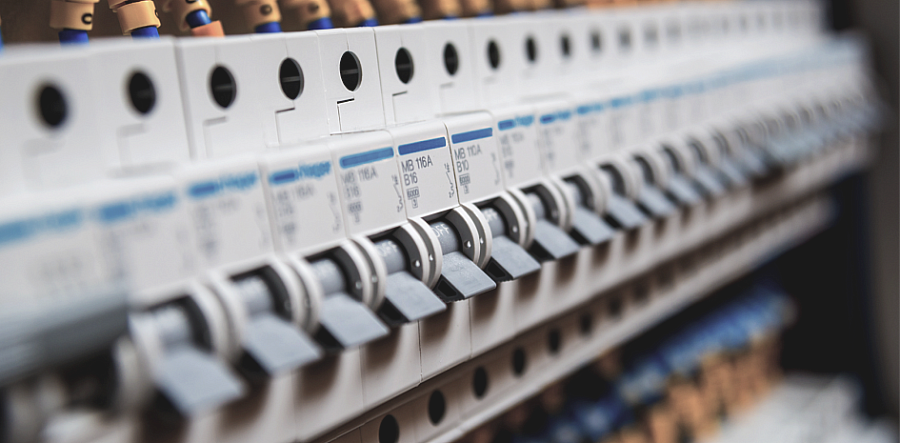

Loadable Families in Revit for Electrical Power Supply Design

For what are loadable families and their main properties needed? Why is it important for manufacturers to have digital twins of their products?

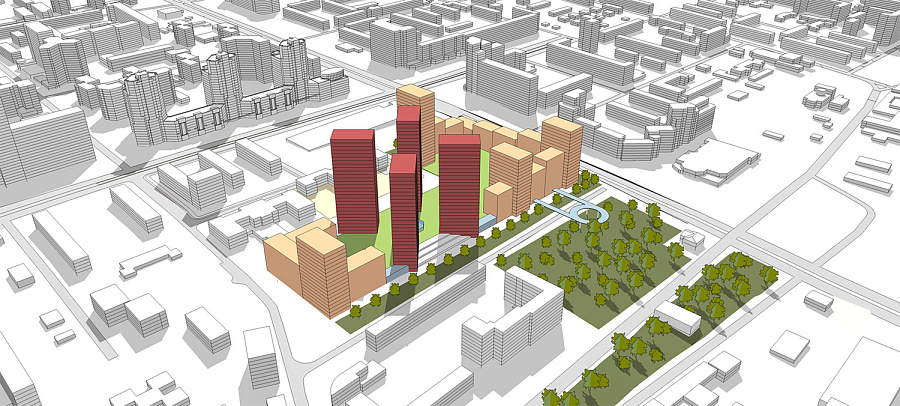

BIM model of the master plan: advantages and opportunities

With the BIM model of the master plan, it is possible to anticipate possible problems at the design stage, rationally use resources and make necessary changes to the project in a timely manner.

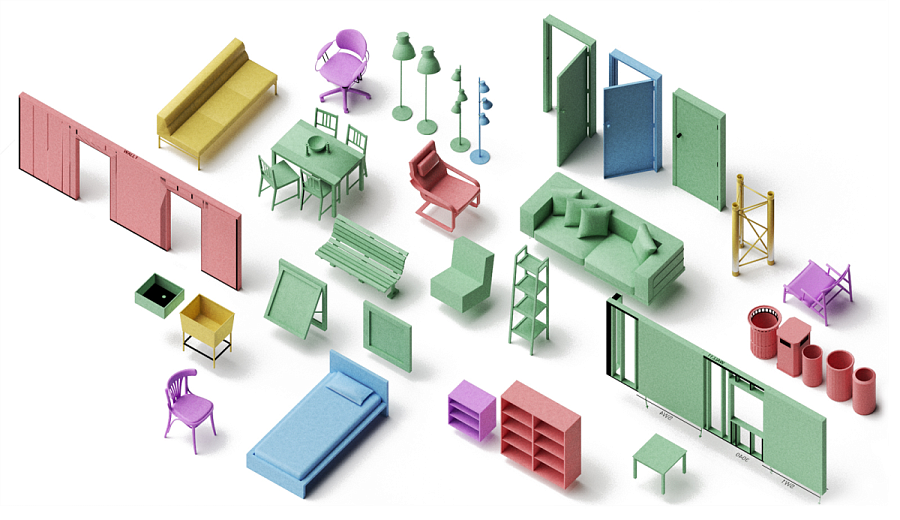

ReSave models - plugin for BIM Coordinators

Plugin for BIM managers and coordinators

they trust us

Client

Swisslux AG

Location

Under NDA

To make it easier for our customers to take the step into the future of construction, we found a competent and reliable partner in Eneca who understood our needs and was able to implement them quickly. As part of our order, Eneca took over the development of 56 parameterized lighting families in Revit with a high level of detail and information. All models were created in the three national languages and in two formats each using Revit script. This means that future adjustments can also be implemented easily and without any problems. The Eneca team works professionally, quickly and precisely, which underlines their competence in BIM.
Based on their experience, I can recommend Eneca.
