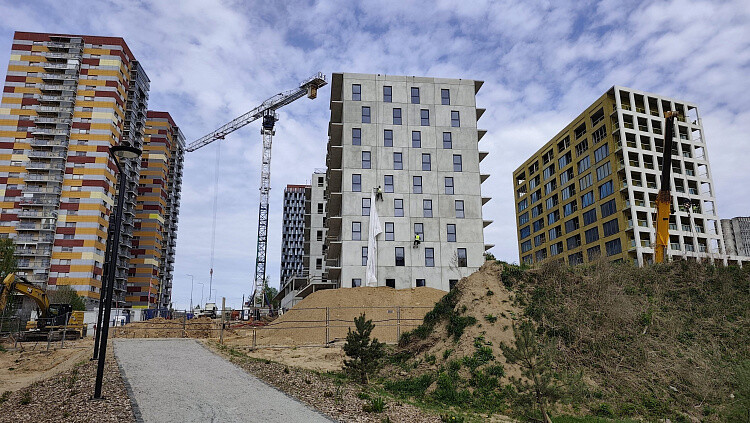

Residential Complex in Vilnius
The project comprises two ten-storey residential buildings accommodating 157 apartments and five commercial units, together with a two-level underground car park providing 127 parking spaces. The development has a total area of 14,202.14 m².
The engineering scope covered structural modelling, analysis and detailed design of precast concrete elements and associated cast-in-place concrete zones, including reinforcement detailing, connection components and coordination with building services.
Structural modelling and multidisciplinary coordination
The team developed a 3D geometric model in Tekla Structures to support element detailing and drawing production. Coordination incorporated mechanical, electrical and plumbing (MEP) requirements, including openings and penetrations for HVAC, plumbing, electrical and low-voltage systems.
Structural analysis and connection design
Structural calculations addressed both in-service conditions and erection stages. The scope also included modelling and detailing of bespoke embedded components and Peikko PETRA slab hangers.
Reinforcement detailing and production documentation
Reinforcement modelling and detailing covered precast concrete elements and cast-in-place zones. Deliverables included detailed fabrication drawings for precast production, drawings for bespoke embedded components and slab hangers, and erection layout drawings defining element positioning and assembly arrangements.
Precast element schedule
The source schedule identifies 891 unique elements:
| Element category | Number of unique elements |
|---|---|
| Three-layer wall panels | 205 |
| Single-layer parapet panels | 31 |
| Single-layer internal wall panels | 223 |
| Balcony slabs | 47 |
| Parapet slabs | 20 |
| PKE20 elements* | 331 |
| Stair flights | 22 |
| Z-type stair flights | 3 |
| Stair landings | 9 |
| Total | 891 |
Engineering delivery
The engineering work spanned seven months and required approximately 4,000 working hours. Team size increased from two engineers at project commencement to five during peak workload periods.
